| 容器罐槽系列》混合機:V型單臂混合機V-shaped single-arm mixer |
|
| |

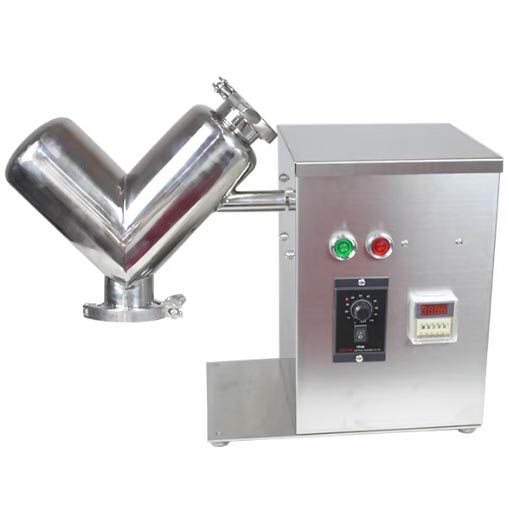

V型單臂混合機 V-shaped single-arm mixer |
| V型干粉混合機 V TYPE DRY POWDER MIXER |
小型干粉V型混合機,粉末攪拌機,V型設計不對稱混合機,它適用于化工、食品、醫藥、飼料、陶瓷、治金等行業的粉料或顆料物料的混合,該機結構合理、簡單、操作密閉,進料方便(人工或真空填料)整體采用304不銹鋼材料制作,便于清洗,是企業的基礎設備之一。
Small dry powder V-type mixer, powder mixer, V-shaped design asymmetric mixer. It is suitable for the mixing of powder or granular materials in industries such as chemical engineering, food, medicine, feed, ceramics, and metallurgy. The machine has a reasonable structure, is simple to operate, and is sealed. The feeding is convenient (by manual or vacuum filling). The entire machine is made of 304 stainless steel, which is easy to clean and is one of the basic equipment of the enterprise.
本機適用于制藥化工食品等行業兩種以上的干粉狀,或顆粒狀物料的混合。
This machine is suitable for the mixing of two or more kinds of dry powder or granular materials in the pharmaceutical, chemical, food and other industries.
該混合機簡潔結構獨特,混合效率高,無死角,采用不銹鋼材料制作。內外壁采用的是拋光處理。外形美觀,混合均勻,適用面廣,且可根據用戶的需求配套強制攪拌器,以適合較細的粉料。
This mixer features a simple and unique structure, high mixing efficiency, no dead corners, and is made of stainless steel. Both the inner and outer walls are polished. It has an attractive appearance, ensures uniform mixing, and has a wide range of applications. Moreover, it can be equipped with a forced agitator according to the user's requirements to suit finer powder materials.
本機不能混合含有水分和油膩的物料!
This machine is not capable of mixing materials that contain moisture and grease! |
|
| 干粉混合機簡介與特點 BRIEF INTRODUCTION AND CHARACTERISTICS OF DRY POWDER MIXER |
干粉V型混合機粉末攪拌機概述
Overview of Dry Powder V-Type Mixer/Powder Blender
:
本機適用于制藥、化工、食品的干粉狀、顆粒狀物料的混合。該機混料簡單結構獨特,混合均勻,效率高,不積料。整機結構簡單,操作容易,外表面和物料接觸部分均采用優質不銹鋼制造,造型美觀,維護,清洗方便。
This machine is suitable for mixing dry powder and granular materials in the fields of pharmaceuticals, chemicals and food. The machine features a simple structure with unique design, achieving uniform mixing with high efficiency and without material accumulation. The overall structure is simple, the operation is easy, and the parts in contact with the materials are made of high-quality stainless steel, presenting a beautiful appearance and facilitating maintenance and cleaning.
干粉V型混合機粉末攪拌機原理與結構
Principle and Structure of Dry Powder V-Type Mixer/Powder Blender:
本機一端裝有電機與減速機,電機功率通過皮帶傳給減速機,減速機再通過聯國器傳給V型桶,使V型桶能連續運轉,帶動筒內物料進行均勻的混合攪拌。
One end of this machine is equipped with a motor and a reducer. The power of the motor is transmitted to the reducer via a belt, and then the reducer transmits the power to the V-shaped barrel through a coupling, enabling the V-shaped barrel to operate continuously and causing the materials inside the cylinder to undergo uniform mixing and stirring.
干粉V型混合機粉末攪拌機使用及保養
Dry powder V-type mixer - Powder mixer usage and maintenance:
1.安裝:將機械放置平穩,裝好機腳,墊平,使機械能運轉自如。
2.使用前先將需要加油處加好油,然后進行空載運轉,檢查各裝置固件是否有松動。電氣是否正常,機械是否運轉正常,如有異常,需進行整修和調試。
3.將加料口轉至上方,打開加料蓋進行加料,加料量不可超過規定容積然后關緊加料蓋,開動機器進行運轉,途中如發現異常,必須停機檢查。
4.下班后或者是更換品種必須將料斗內、外沖洗干凈。
1. Installation: Place the machine steadily, install the machine feet, level it, and ensure that the machine can operate freely.
2. Before use, add oil to the necessary parts, then perform no-load operation to check if all device fasteners are loose. Check if the electrical system is normal and if the machine is operating normally. If there are any abnormalities, repair and debug are required.
3. Rotate the feeding port upwards, open the feeding cover to add materials, the amount of added materials should not exceed the specified volume, then close the feeding cover, start the machine to operate. If any abnormalities are found during operation, the machine must be stopped for inspection.
4. After work or when changing varieties, the material hopper inside and outside must be rinsed clean. |
|
| 主要技術參數Specification |
規格
model |
桶體容積
Bucket volume |
工作容積
working volume |
電機功率
motor power |
混合轉速
Mixed speed |
外形尺寸
Overall dimensions |
最大裝量
Max loading weight |
機器重量
machine weight |
VH-2L |
2L |
0.8L |
0.06kw |
24r/min |
450mm*270mm*450mm |
0.5kg |
13kg |
VH-5L |
5L |
2L |
0.55kw |
24r/min |
560mm*270mm*560mm |
2kg |
35kg |
VH-8L |
8L |
3.2L |
0.55kw |
24r/min |
610mm*280mm*740mm |
2.5kg |
40kg |
VH10 |
10L |
4L |
0.55kw |
24r/min |
610mm*280mm*740mm |
2.8kg |
45kg |
VH-14L |
14L |
5.6L |
0.55kw |
46r/min |
780mm*350mm*850mm |
4kg |
72kg |
VH-20L |
20L |
8L |
0.55KW |
20r/min |
1090mm*460mm*1000mm |
10kg |
80kg |

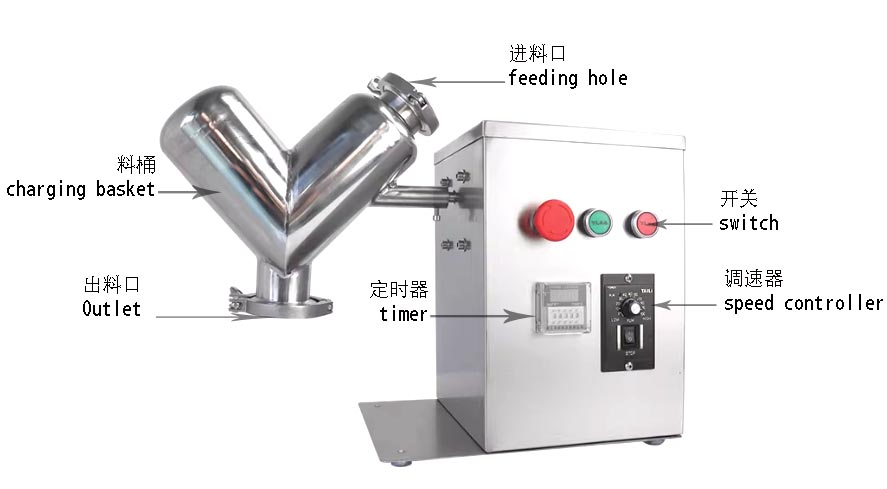

| 產品結構Product Structure |
| 產品細節product details
|
 |
| 01 |
| |
機身外殼
fuselage cover |
轉筒和機器均采用304不銹鋼材質
Both the drum and the machine are made of 304 stainless steel. |
|
| 02 |
| |
控制面板
control panel |
可定時,調速,開關啟停
Can be set for timing, speed adjustment, and has on/off function. |
|
 |
 |
| 03 |
| |
進料口
feed port |
食品級不銹鋼耐磨方便
Food-grade stainless steel, durable and convenient
|
|

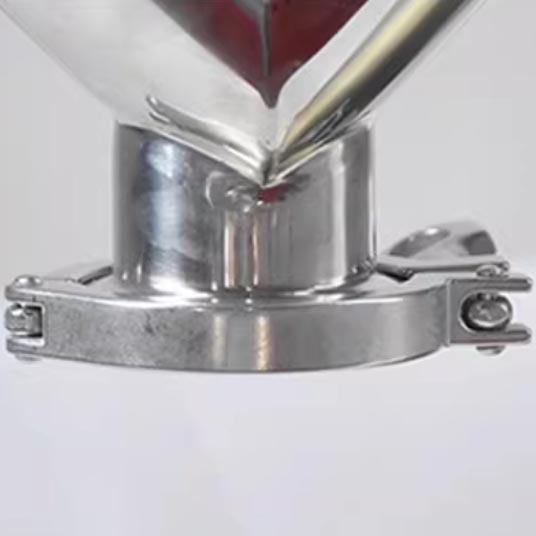

| 04 |
| |
出料口
discharge hole
|
簡單操作方便自如
Simple operation, convenient and smooth.
|
|
 |
 |
| 05 |
| |
非標定制
Customized non-standard products |
支持來圖來樣定制特殊尺寸
Support custom orders for special sizes based on provided drawings and samples. |
|

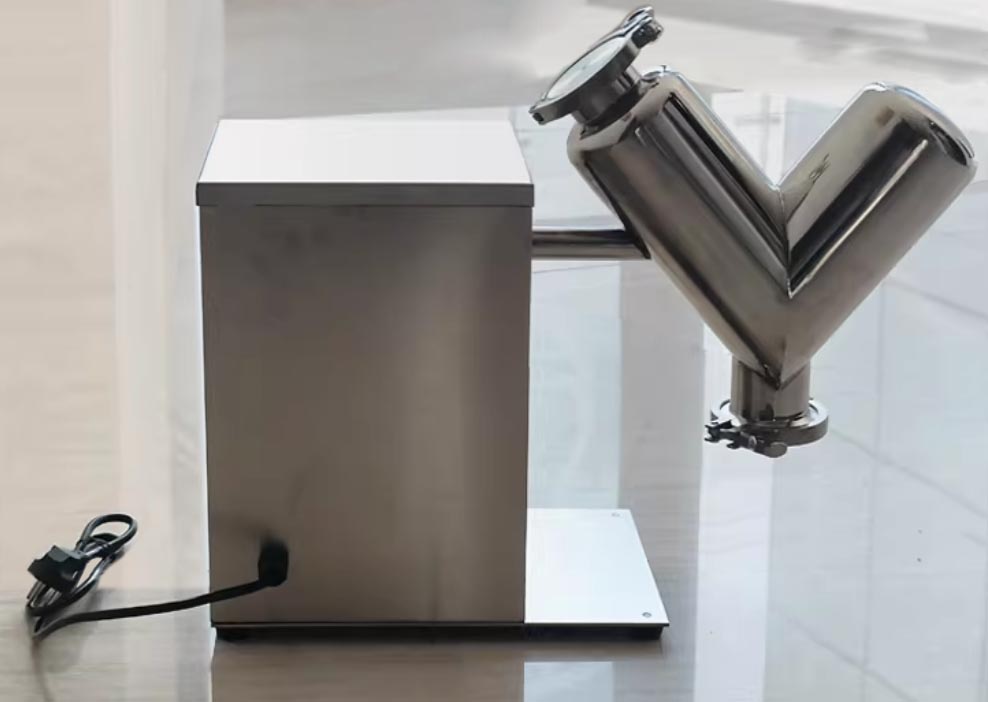

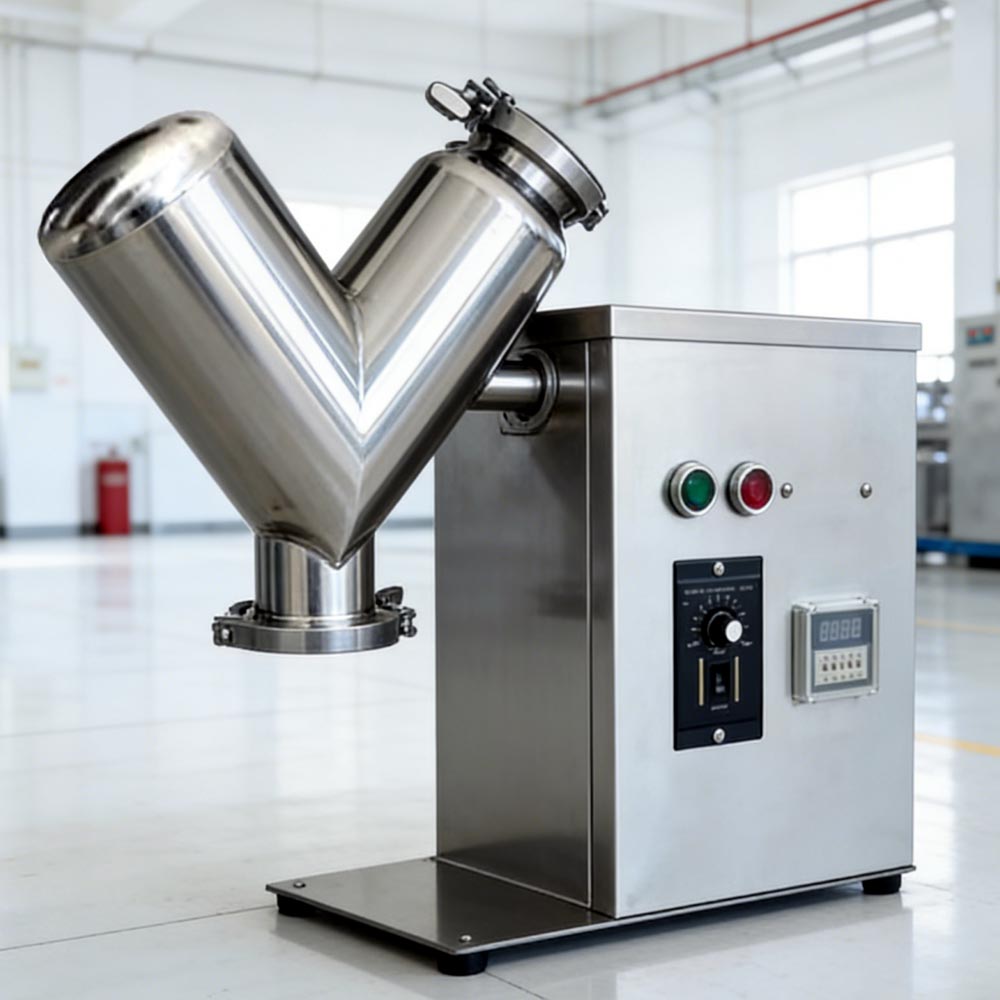

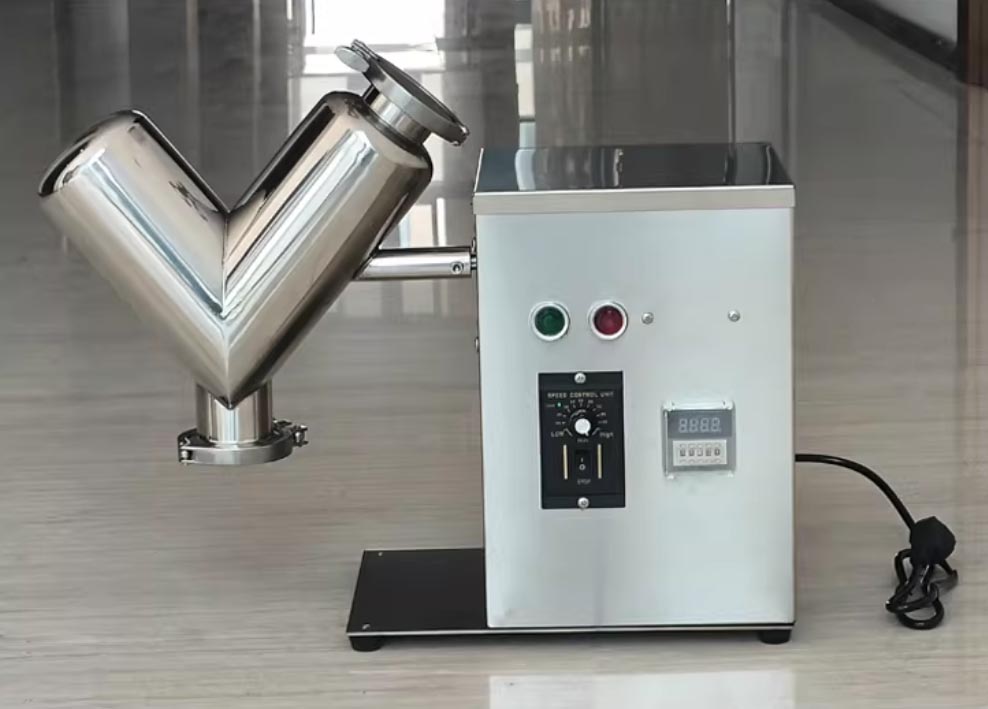

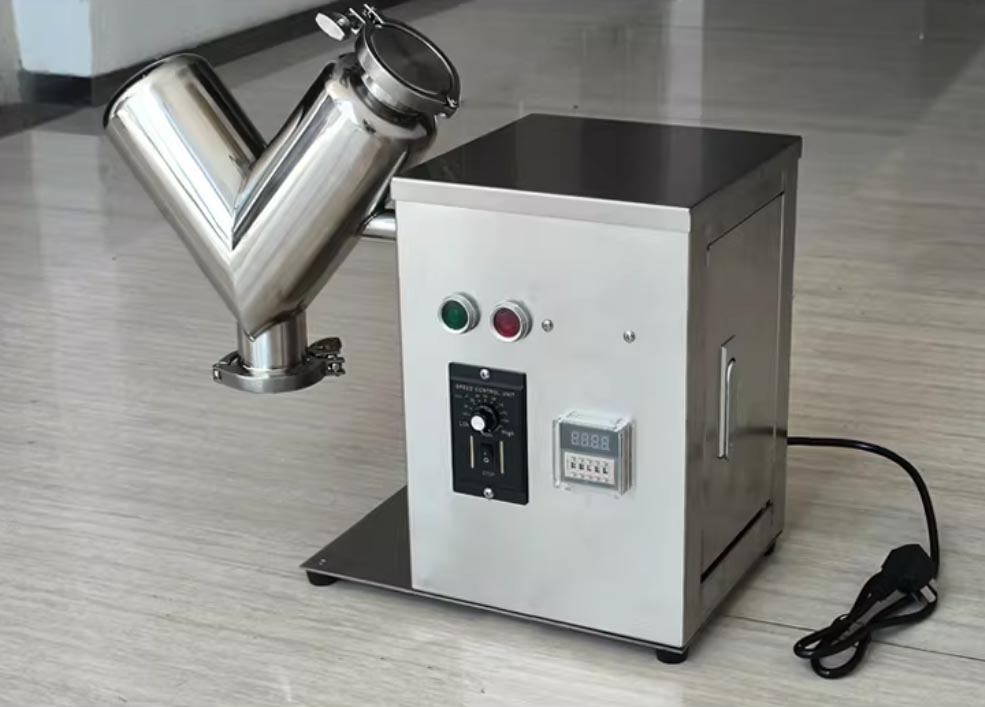

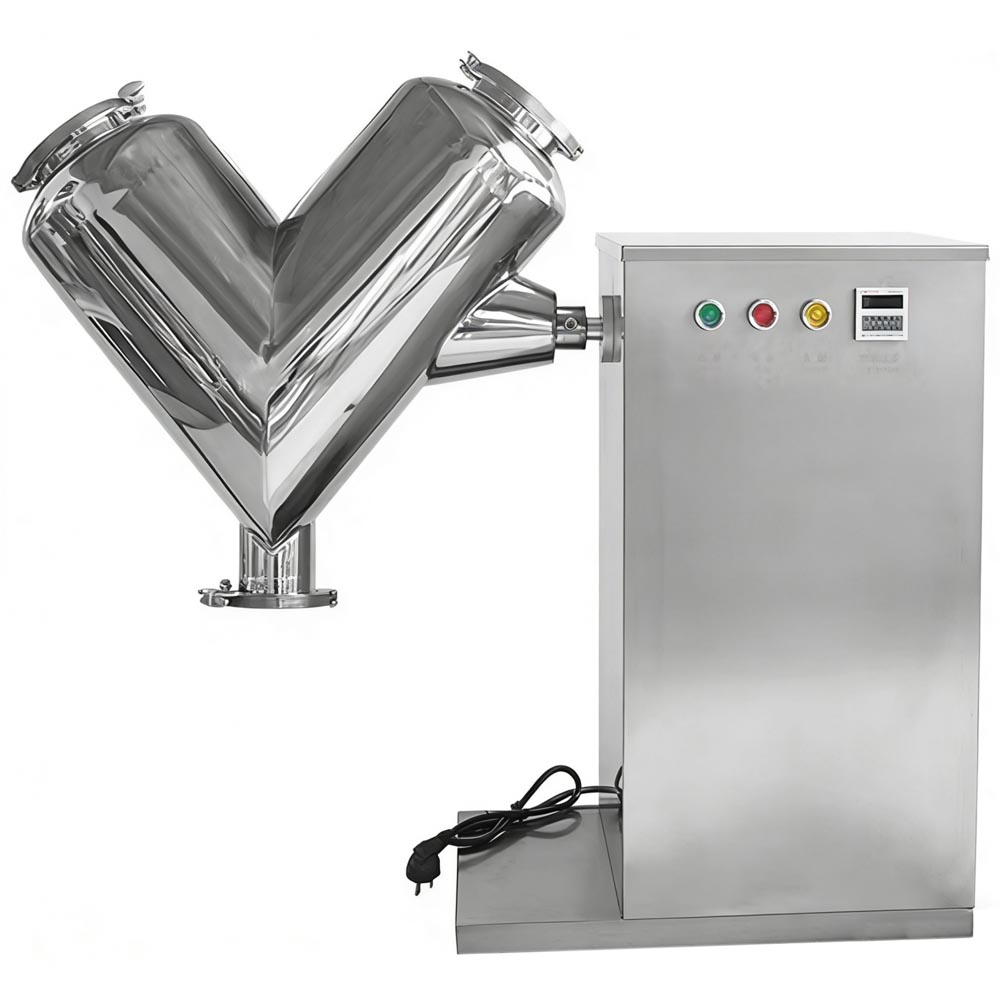

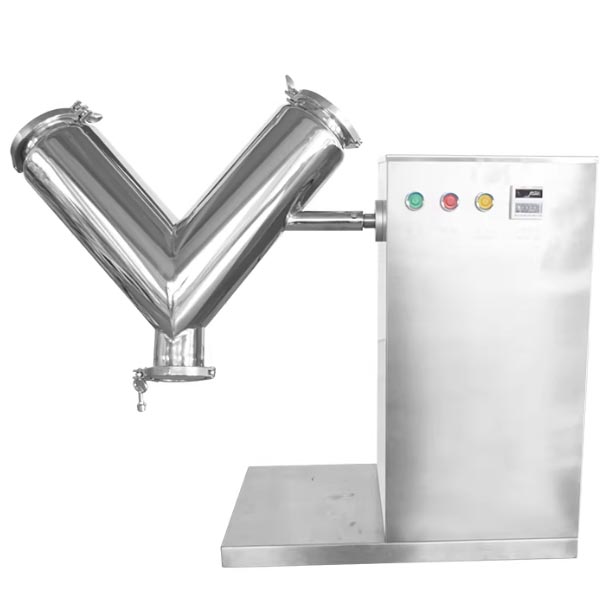

| 產品實拍Product Photograph |
|
| |
| |
|
|
